Seville 30

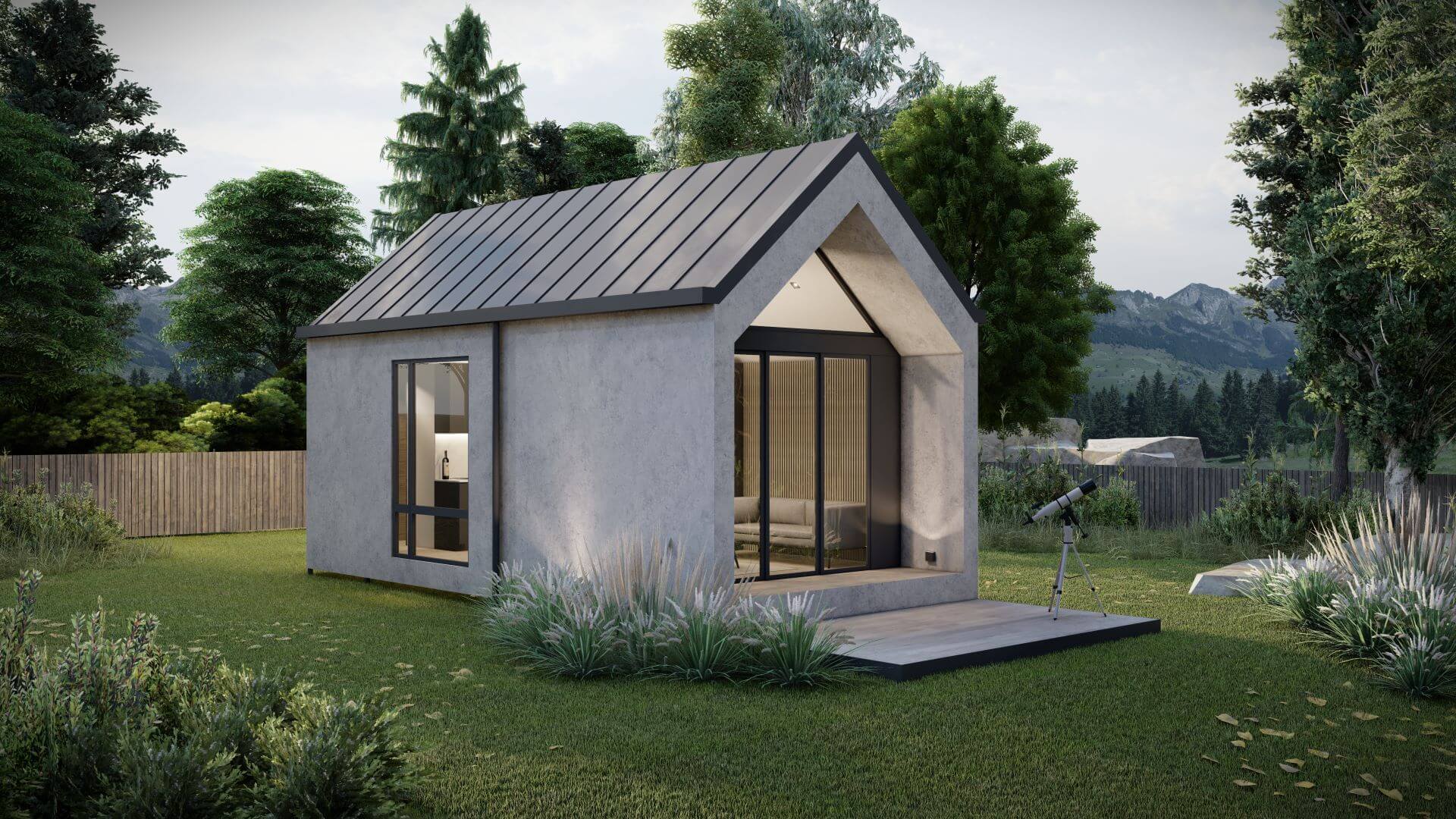

The Seville 30 is another design featuring the Spanish feel and look. Featuring 1 bathroom and a hidden laundry in the kitchen. The slender and sleek style of this home is ideal for narrower blocks. The signature raked ceilings continue in the Seville range of homes. Ideal home office, AirBNb cabin, art studio or extra room for the family. Available in 3 cladding options Greenborad, Duragroove or Duraplank.
Sub Floor - For non-slab includes deck area of 3m2 - $8,250
Floor Plan
Gallery
Compact Homes standard list of inclusions
FREE with every Home Kit
-
- PLANS & APPROVAL MANAGEMENT
- Architectural Plans (incl. electrical & lighting plan)
- Framing Engineering & Layout Plans
- Management of Building Approval
Home Kit to include: (For Concrete slab)
- FRAMES & TRUSSES (STEEL)
- Structural Steel/Portal
- Steel Wall Frames
- Steel Roof Trusses
- Tie Downs & Bracings
- Ceiling Battens
- 12mm H2 Plywood (NCC Requirement for bathrooms)
- Fixings
ROOFING KIT
- Roof Batten
- Anticon™/Roof Blanket Insulation (per Energy Efficiency requirements)
- Novaline® Fascia System
- Trimline® Gutters
- Colourbond® Roof Sheeting (Trimdeck as Standard)
- Colourbond® Flashings
- Roof Fixings (including colour match screws & rivets)
- Silicone
WINDOWS & GLASS DOORS
- Aluminum Windows (including timber jambs & damp proof course)
- External Doors (Sliding, Stacker or Bifold)
- Toughened Glass - Tinted Grey
- Architecturally Designed Plasterboard Reveals
- Window & Glass Door Locks (keyed alike)
- Colourbond® Window & Door Head Flashings
- Installation Fixings
- Handover Pack (including keys, care instructions, certification and warranty information)
CLADDING
- Vapour Permeable Building Wrap
- Thermal Break (Dual Layer Foam Adhesive if required)
- Head Flashings (Folded)
- External Cladding (Duragroove standard for most designs)
- Aluminium Corners & Trim
- Back Flashings (Folded)
- H3 Timber Trims (for sides & sills of all windows and sides of all doors)
- Sheet Fixings, Joint Adhesive & Screws
SOFFITS (Only if required)
- Soffit Sheets
- H Mould
- H3 Brick Mould
- Screws
EXTERNAL LOCK-UP
- HUME NEWINGTON XN5 Entrance Door - Timber & Translucent Glass
- LEMAAR ORBA Entrance Set – Black
INSULATION
- Ceiling Insulation Batts R2.5 (Standard)
- Wall Insulation Batts R2.0 (Standard)
ADDITIONAL INSULATION (SUBFLOOR OPTION ONLY)
- Floor Insulation Batts (Not Standard)
PLASTERBOARD
- Ceiling Lining - 10mm Plasterboard
- Wall Lining - 10mm Plasterboard
- Wet Area Lining (Kitchen, Bathroom/s and Laundry Only) – Water Resistant 10mm Plasterboard
- Stud Adhesive
- Collated Screws
INTERNAL FIT OUT
- HUME ACCENT HAG11 Internal Doors – Primed
- LAMAAR ZALLA Internal Door Handles (with privacy set to bathroom/s) – Black
- ADOORED SULATE Magnetic Door Stops – Black
- Single Bevel Architraves (66mm x 11mm) – Primed
- Single Bevel Skirtings (66mm x 11mm) – Primed
- Wardrobe Jambs (92mm x 18mm) - Primed
Elevated Flooring System (for non-slab)
- 1 SUB-FLOOR SYSTEM
-
Sub Floor Steel C purlin and Nesting Channel - Bearers and Joists
-
19mm Termiflor Yellow Tongue flooring. (Construction Adhesive Included)
-
FC Secure Scyon for wet areas
-
Engineered Timber Deck (EKODECK Classic Range)
-
(No Steps or Handrail included)
Note: Our standard designs are rated to a non-cyclonic N3 Classification.
Not Included In our Kit Homes
-
We do not Include any form of labour.
- Piers, Posts or Underfloor insulation
-
Electrical components or wiring
-
Plumbing Components
-
Joinery package like kitchens, robes or living area cabinets and doors.
-
Bathrooms vanity
-
Internal & External Stairs
-
Balustrades
-
Floor Coverings
-
Window Coverings (Blinds)
-
Paint or any other items not listed in the “Inclusions”
- Flyscreens or security screens. (Available at additional cost)
- Robe Doors
Note: This is a general inclusions list to cover the broader spectrum of our designs. Some items may not be included if they are not part of the design.
Disclaimer: Visual Representations
Please note that all images, 3D renders, and visual representations on our website are for illustrative purposes only. While we strive to provide accurate depictions of our homes, the final product may vary in design, features, and materials. Factors such as compliance requirements, engineering constraints, or material availability may necessitate modifications. Some features, finishes, or fixtures shown in the renders may not be included in the standard build.
Compact Homes reserves the right to make such changes, and these variations do not constitute a defect or grounds for liability. We encourage prospective clients to consult with our team for precise specifications and inclusions in their chosen home design.
